Product description

The glass fiber reinforced plastic fishing boat is specially used for ocean-going tuna fishing operations and ultra-low temperature quick freezing and refrigerated ocean-going fishing boats. The fish cabin is equipped with mature foreign refrigeration equipment. The inner container is made of glass fiber reinforced plastic structure with heat preservation effect, which is kept at an ultra-low temperature of minus 60 degrees for cryogenic storage. The fish catch is first frozen in the freezing cabin at minus 60 degrees and then moved to the fish cabin for storage. The composite ocean-going longline fishing vessel adopts ultra-low temperature rapid freezing technology, which makes the tuna fish body center temperature drop below minus 50 degrees in a short time, and can maintain the biological activity and nutritional components of fish cells for a long time.




FAQ

 Q1. MOQ?

 A: At least 1set,we can give discount if buy large quantities.

 Q2. OEM or ODM?

 A: We can customize boats according to customer's design and requirements.

 Q3. Sea trial?

 A: We haven't showroom,we'll do sea trial before delivery.

 Q4. Terms of payment?

 A: We usually accept T/T payment terms,30%as deposit,40% in producing,30% before shipment. We'll show you the photos of the products before delivery.

 Q5. Delivery time?

 A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

 Q6. Warranty?

 According to different models,generally we provide one years warranty.

 Q7: How do you make our business long-term and good relationship?

 A:1. We keep good quality and competitive price to ensure our customers benefit ;

    2. We respect every customer as our friend and we sincerely do business and make friends with them.



Our Service

 1. One year warranty

 2. We will reply you for your inquiry in 24 hours.

 3. stable product quality , supply, the good faith management.

 4. after sending, we will track the products for you, until you get the products. When you got the goods, test them, and give us a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

 5. The boat can be put in the water to test the performance before delivery.

Length overall         98.68mDesign Speed        13KN
Design waterline length     45.94mTotal tonno    475t
Length between perpendiculars   43.20mNet tonno      142t
Breadth moulded              7.50mNavigating zone I
Depth moulded3.90mTotal volume of refrigerated fish compartment 411.27
Designed draft 3.10mTotal volume of refrigerated bait compartment33.75m³
Crew quota      19PTotal frozen library volume63.62m³
Model of main        XCW8200ZCTotal fuel tank volume   219.21m³
Host power    1360Kw*1000r/minTotal freshwater tank volume36.26m³
Gearbox ratio       HC1200  4:1Oil slide capacity2.67m³
Duration          3500n/mileTank volume0.77m³


Residual tank volume1.14m³

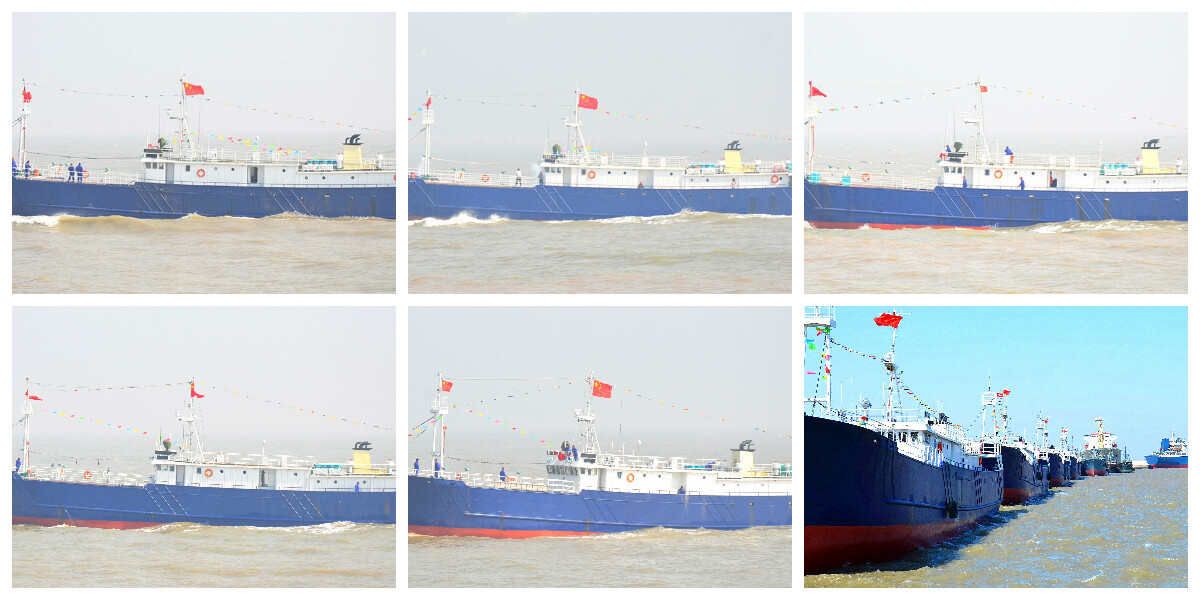

Product display

下载 (9).jpg
