Product description

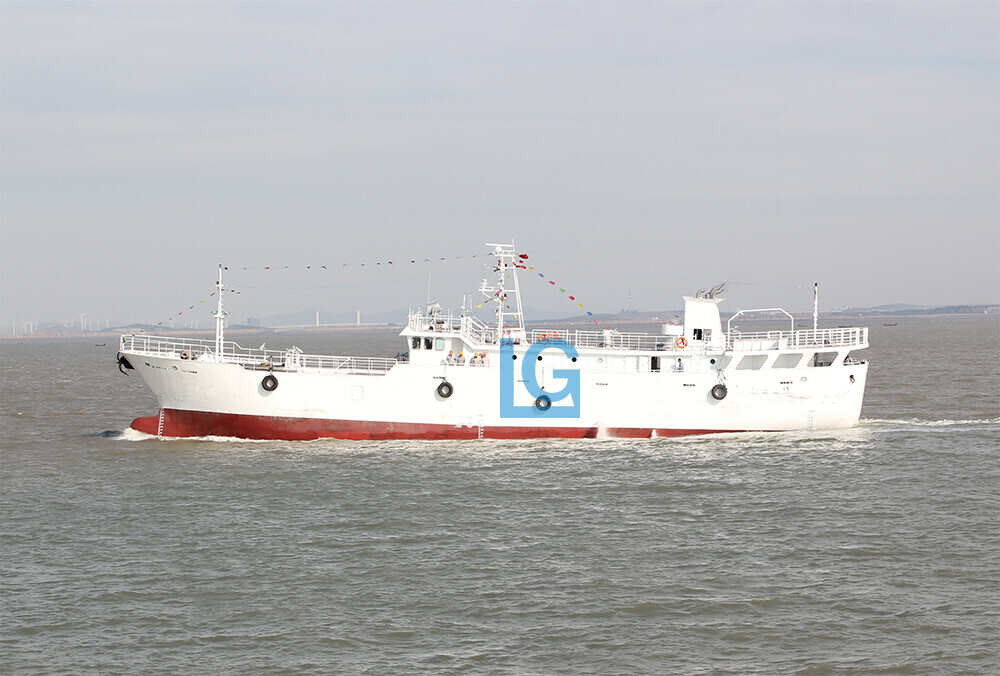

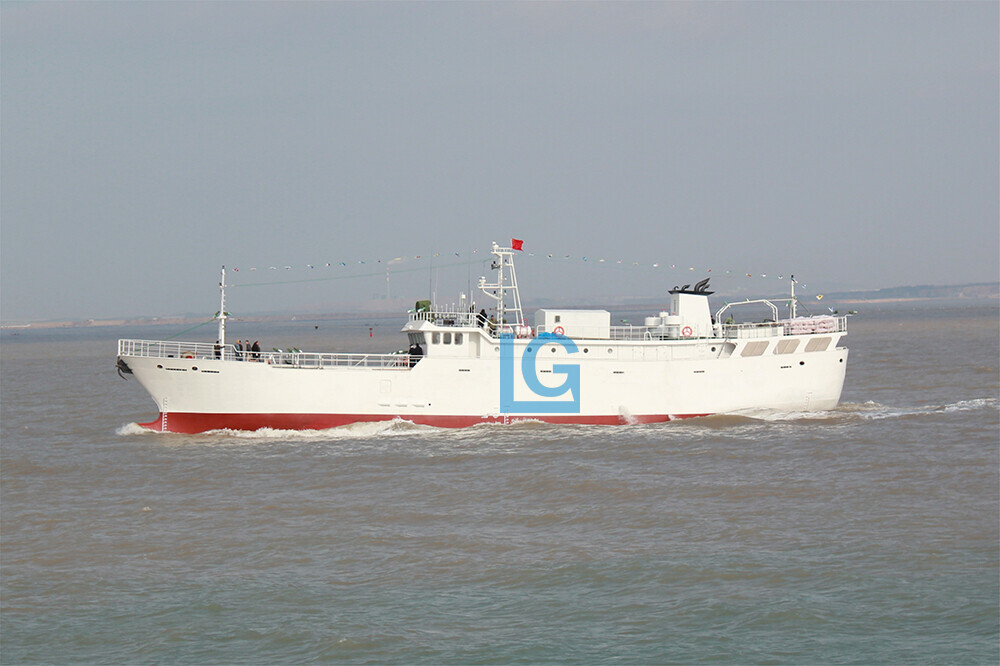

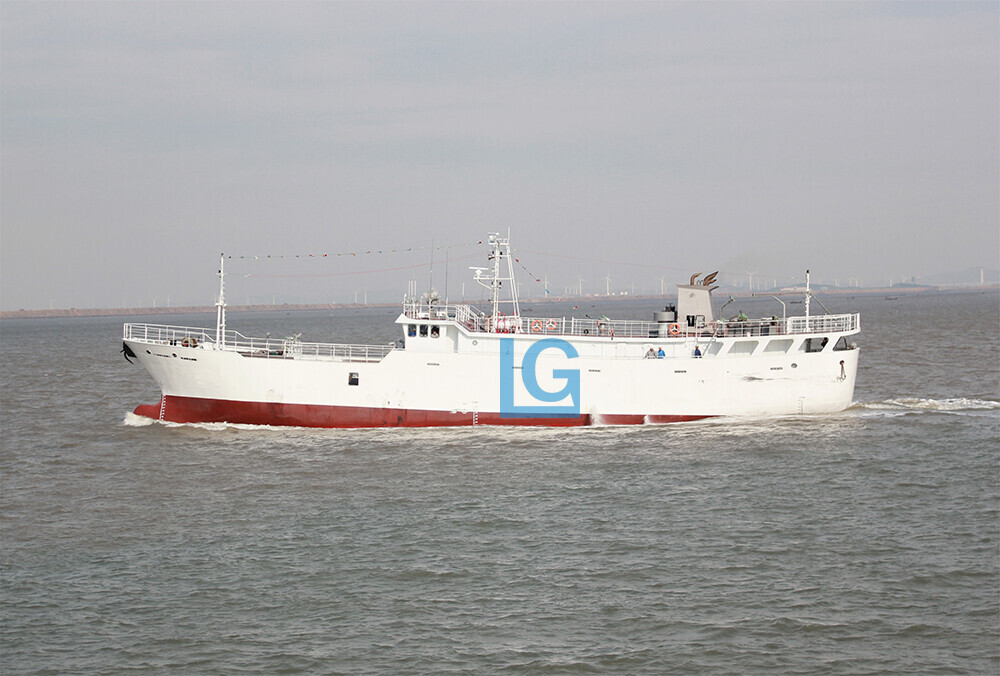

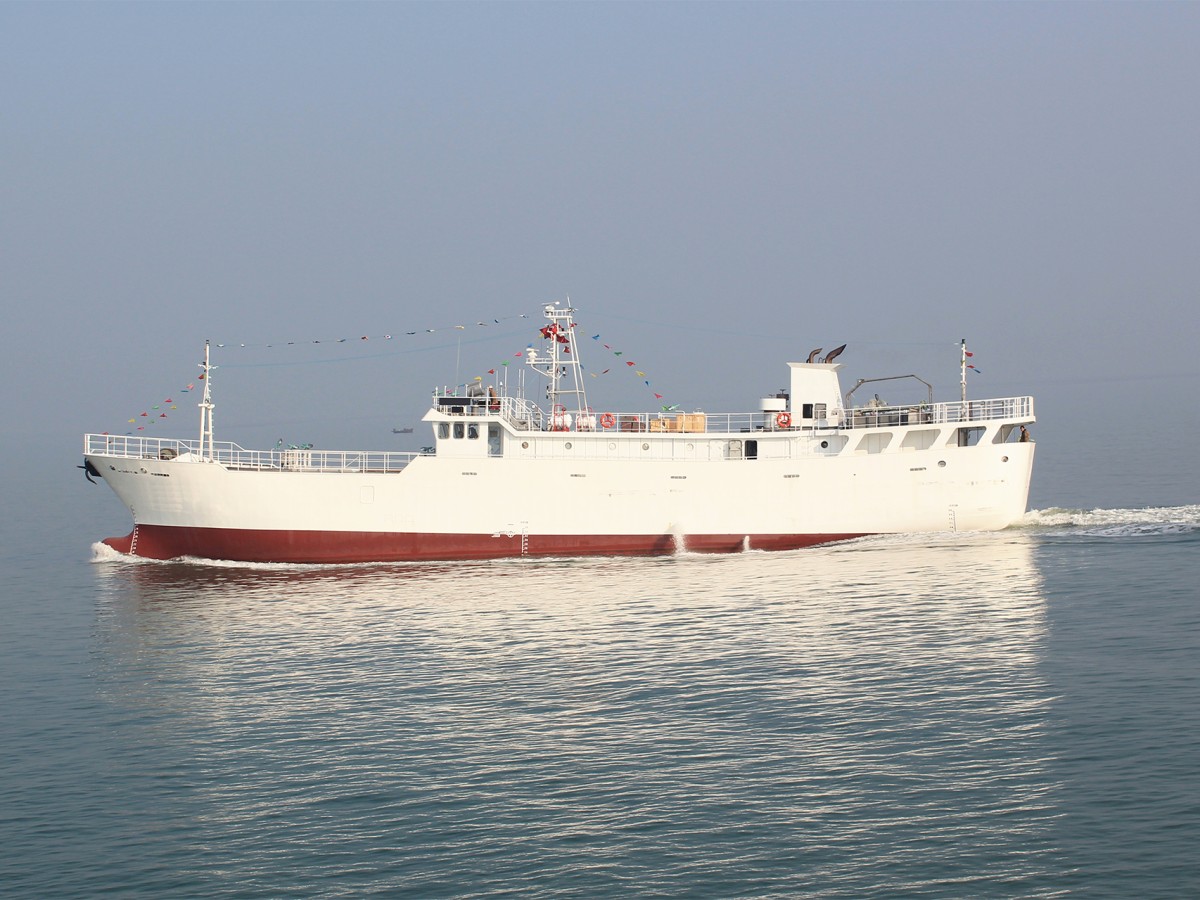

The glass fiber reinforced plastic fishing boat is specially used for ocean-going tuna fishing operations and ultra-low temperature quick freezing and refrigerated ocean-going fishing boats. The fish cabin is equipped with mature foreign refrigeration equipment. The inner container is made of glass fiber reinforced plastic structure with heat preservation effect, which is kept at an ultra-low temperature of minus 60 degrees for cryogenic storage. The fish catch is first frozen in the freezing cabin at minus 60 degrees and then moved to the fish cabin for storage. The composite ocean-going longline fishing vessel adopts ultra-low temperature rapid freezing technology, which makes the tuna fish body center temperature drop below minus 50 degrees in a short time, and can maintain the biological activity and nutritional components of fish cells for a long time.




Length overall

49.2mDesign Speed        11.5KN
Design waterline length     44.65mTotal tonno    498t
Length between perpendiculars   43.00mNet tonno      165t
Breadth moulded              7.60mNavigating zone I
Depth moulded3.80mSelf-supplying capacity 45D
Designed draft 3.30mFish tank volume     422.79m³
Crew quota      28PFreshwater cabin volume13.88m³
Model of main         CW6240ZLCFuel tank volume   220.83m³
Host power    928KwBallast tank volume8.59m³
Gearbox ratio          5.545:1Oil slide volume8.56m³
Duration          5000n/mileTank volume2.01m³


Residual tank volume1.89m³

FAQ


Q1. MOQ?


A: At least 1set,we can give discount if buy large quantities.




Q2. OEM or ODM?


A: We can customize boats according to customer's design and requirements.






Q3. Sea trial?


A: We haven't showroom,we'll do sea trial before delivery.




Q4. Terms of payment?


A: We usually accept T/T payment terms,30%as deposit,40% in producing,30% before shipment. We'll show you the photos of the products before delivery.




Q5. Delivery time?


A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.




Q6. Warranty?


According to different models,generally we provide one years warranty.




Q7: How do you make our business long-term and good relationship?


A:1. We keep good quality and competitive price to ensure our customers benefit ;


 2. We respect every customer as our friend and we sincerely do business and make friends with them.




Our Service


1. One year warranty




2. We will reply you for your inquiry in 24 hours.




3. stable product quality , supply, the good faith management.




4. after sending, we will track the products for you, until you get the products. When you got the goods, test them, and give us a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.




5. The boat can be put in the water to test the performance before delivery.

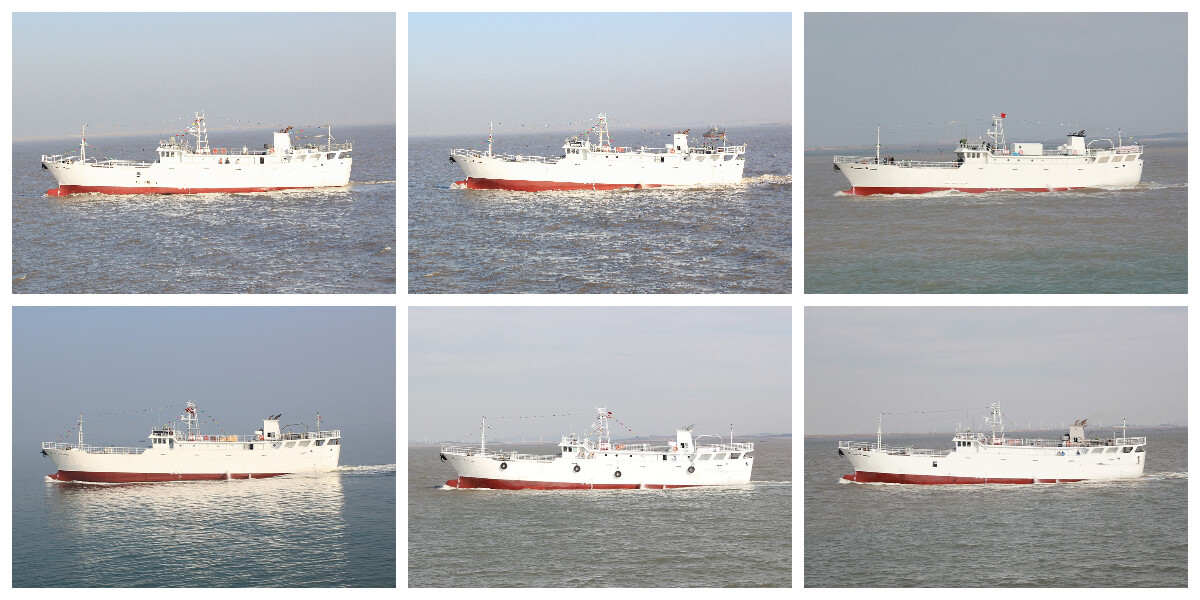

Product display

下载 (8).jpg

production advantages
